HDW | Inspection Equipment Solutions

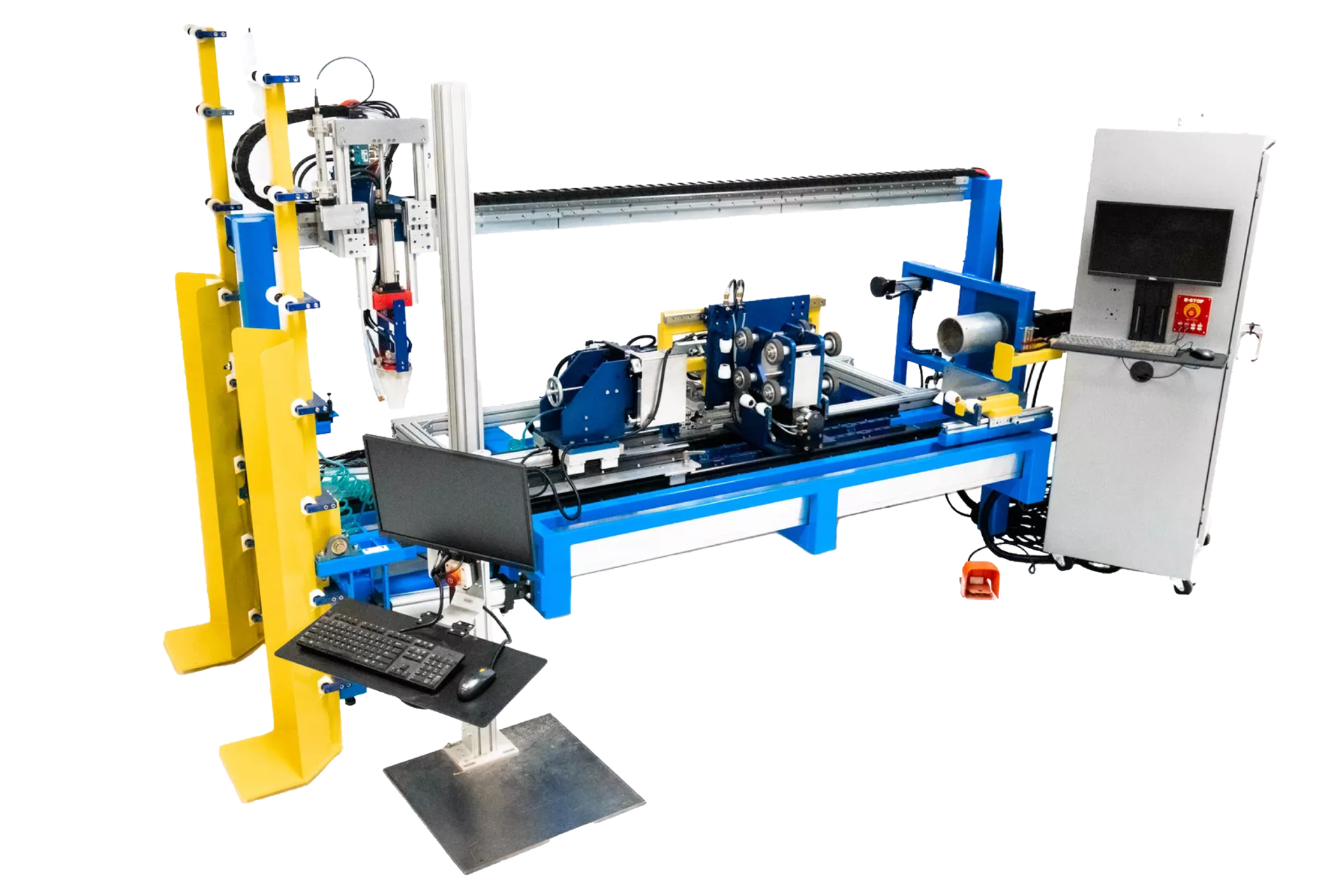

Outstanding Safety & Efficiency

- Designed for facilities performing periodic
inspections of high-pressure gas cylinders

- Easy to operate and suitable for installation in
compact spaces

(Installation footprint: approx. 12 ft (L) × 5 ft (W))

Advanced Safety Monitoring

- Dedicated defect detection software

- Equipped with 5-channel transducer scanning head

- Includes positioning guide rails, adjustable test speeds, and auxiliary handling functions

Simple Installation Requirements

- Requires 208V, 3-phase power supply and

90 psi compressed air connection

- On-site setup support and customized
operator training available

Cloud-Based System
- Supports remote data processing and flexible operational response

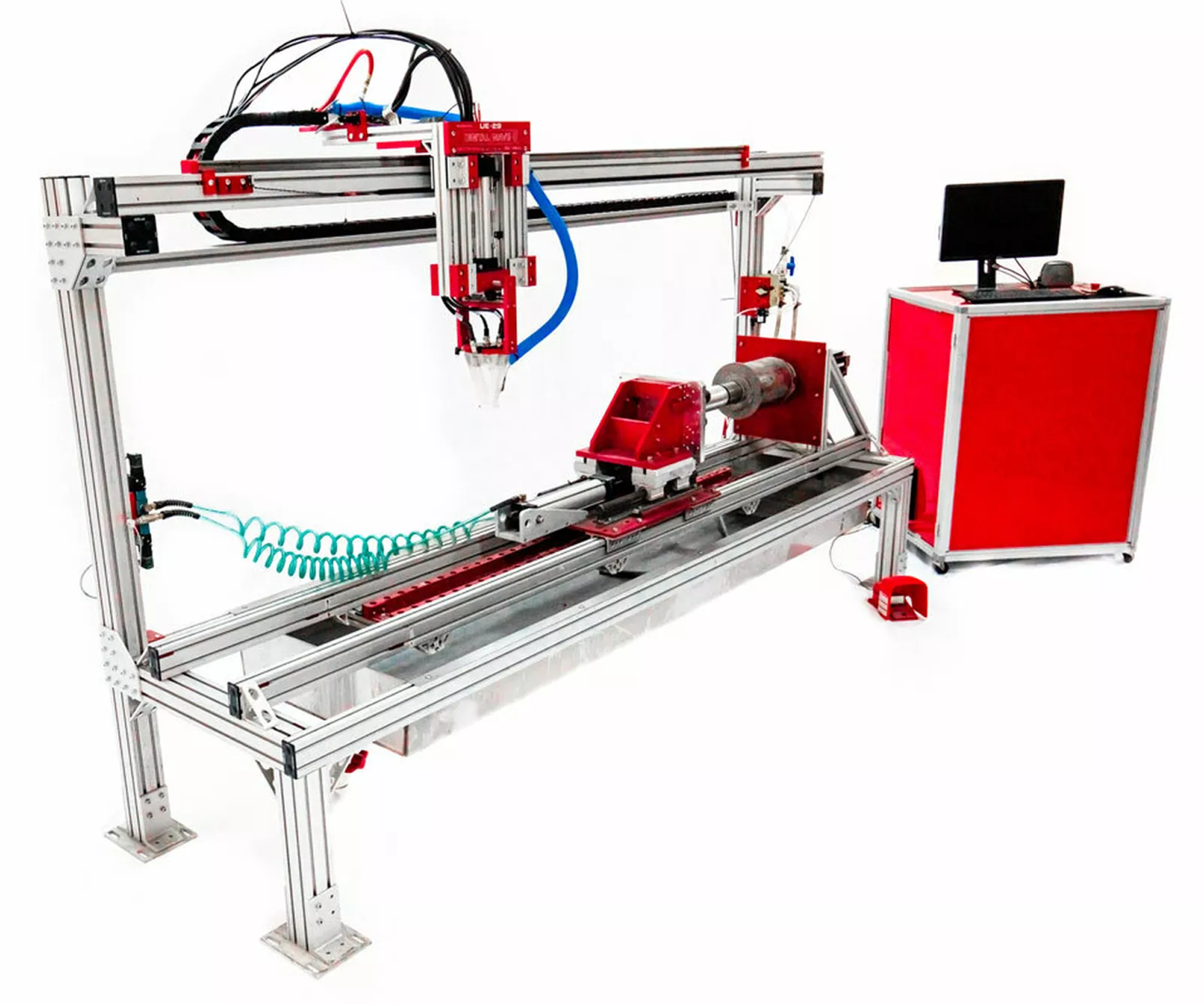

Integrated Inspection Frame

- Optimized for inspection and requalification
of large-capacity gas cylinders

- Enables faster inspection compared to
conventional inspection methods

Automated Cylinder Handling
- Supports a wide range of cylinder sizes
(Diameter: 3.2"–10.5", Height: 8"–66")

- Enhances operational safety and
inspection efficiency

High-Speed Scanning – No Valve Removal Required
- Provides one of the fastest cylinder
scanning speeds available

- Cylinders can be inspected without
removing gas valves

Simple Installation Requirements
- Requires 208V power supply and 90 psi
compressed air connection

- Compact installation footprint: approx.
18 ft (L) × 8 ft (W)

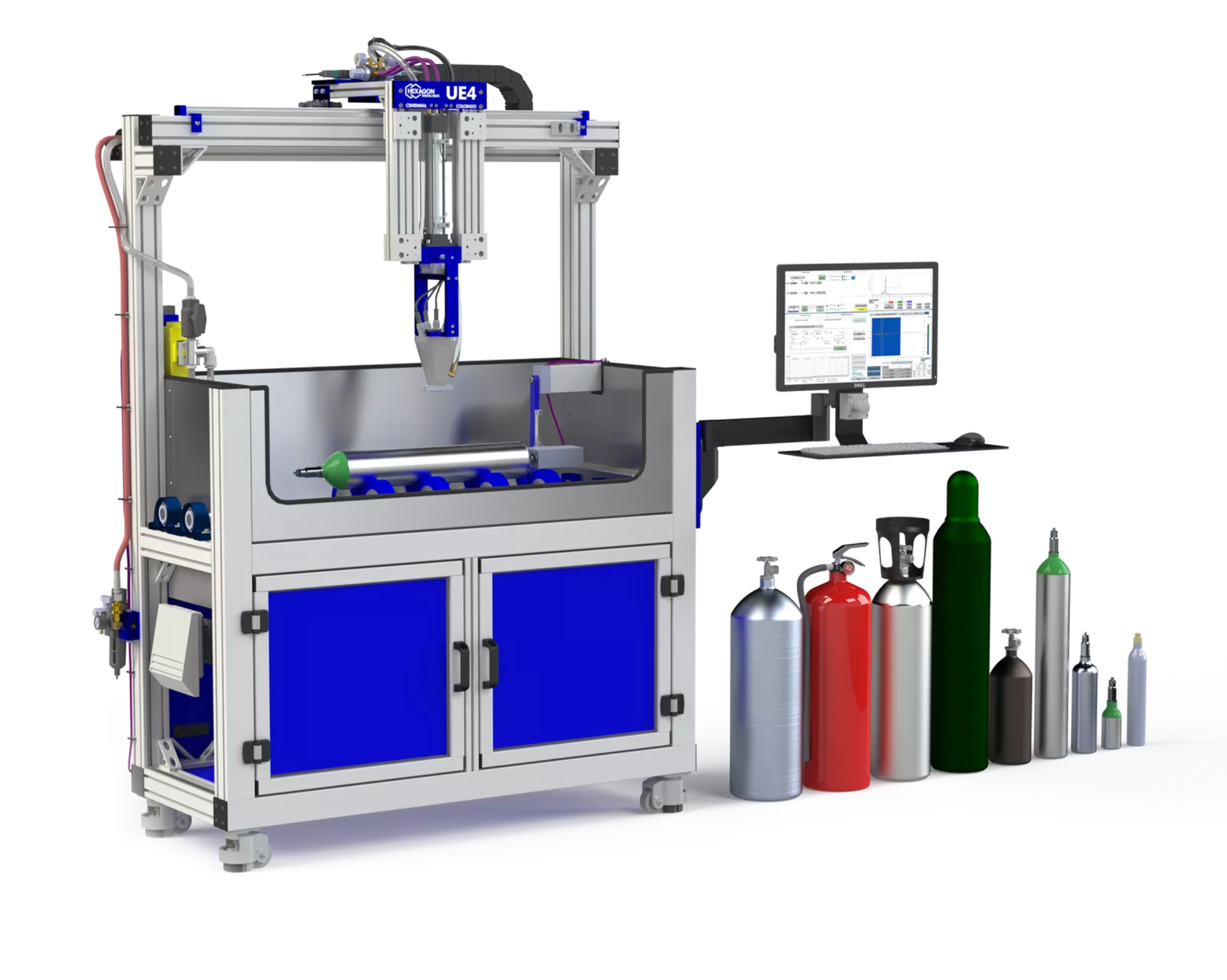

Next-Generation Ultrasonic Inspection Solution
- Optimized for inspection of industrial,
medical, and specialty gas cylinders

Advanced Technology
- Equipped with Hexagon-certified
advanced ultrasonic inspection
technology

High-Accuracy Inspection
- Precisely detects internal defects in
cylinder walls

Standards Compliance
- Fully compliant with domestic and
international inspection standards
- Suitable for both regulatory inspections

and quality verification

Compact & Mobile Design
- Small footprint: approx. 5 ft (L) × 3 ft (D) - Designed for easy relocation and flexible
installation
- Power requirement: 110V single-phase
power

Wide Cylinder Compatibility
- Diameter: 2.2" – 8.5"
- Height: 8" – 36"
- Maximum weight: 22.7 kg

Supported Cylinder Types
- SodaStream cylinders: 32L, M6, M44,
Med E (10L), M1 (15L)
